Bypass parking brake wire on Pioneer AVH head unit the ... I recently installed a Pioneer AVH-521EX double-din stereo in my 2004 GMC Yukon and found an alternative way to bypass the parking brake wire. Sent from my iPhone using Tapatalk audio - Pioneer stereo parking brake wire issue - Motor ... This is the high-low-high signal the Pioneer needs. Hand brake up -> circuit open -> green wire not grounded -> high signal Hand brake down -> circuit closed -> green wire grounded -> low signal Hand brake up -> circuit open -> green wire not grounded -> high signal Share Improve this answer answered May 6, 2018 at 18:15 Filip Kilibarda 191 1 1 6

Pioneer Avic N1 Cpn1899 Wiring Diagram Pioneer Parking ... There are just two things which are going to be found in any Pioneer Parking Brake Bypass Wiring Diagram. The first element is emblem that indicate electric element from the circuit. A circuit is generally composed by several components. Another thing you will see a circuit diagram could be traces.

Pioneer parking brake bypass wiring diagram

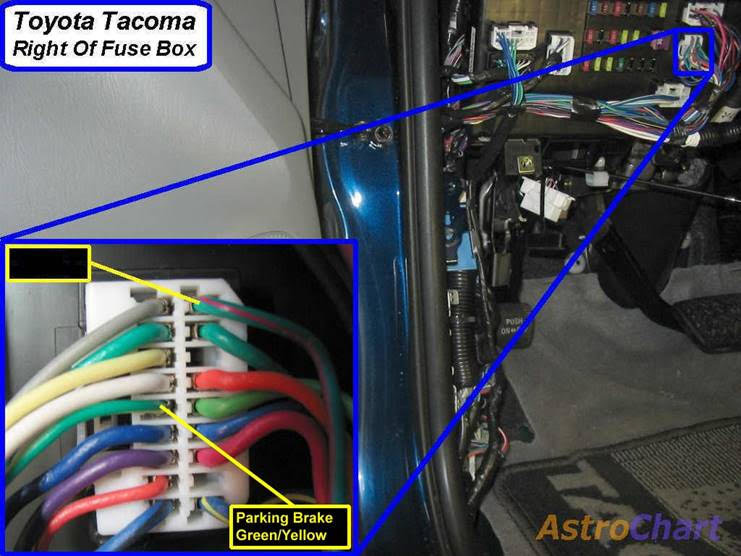

Pioneer Parking Brake Bypass Wiring Diagram - Wirings Diagram According to previous, the lines in a Pioneer Parking Brake Bypass Wiring Diagram represents wires. Sometimes, the cables will cross. But, it does not imply connection between the cables. Injunction of two wires is generally indicated by black dot to the intersection of 2 lines. There'll be main lines that are represented by L1, L2, L3, and so on. Pioneer Avh 2400 Nex Wiring Diagram [How to] Enable Video Bypass on Pioneer NEX Units With the AVICNEX, , , and even the new NEX, NEX, NEX, and NEX. You don't need to splice into or ground the parking brake wire in order .. It's all in the manual for the , should be in the others as well. Configure a Pioneer audio sound system that fits your vehicle. Where/how do I find the parking brake wire to connect to ... Ok so I was thrilled with my Pioneer head unit. Looks good and sounds great. But, I found out today that the sound for phone calls only comes out of the phone; called Crutchfield and apparently I need to open the damned dashboard up again to connect the parking brake wire, just to be able to reset the sound to something called "speaker mode".

Pioneer parking brake bypass wiring diagram. Pioneer Avh 270bt Wiring Diagram Pioneer Avh bt Wiring Diagram Valid Pioneer Avh bt Wiring Diagram Collection was upload at April 23, at pm by admin, and This Pioneer Avh.Pioneer AVHBT Bypass Radio Parking Brake Bypass Break Override If you find any conflicting info please leave a comment with what you found with your AVH BT AVHBT. Easiest Way To Bypass Park Brake Wire! - YouTube easiest way to bypass your park brake wire on an aftermarket head unit. The park brake wire is a safety feature that is standard on all af... Pioneer Parking Brake Bypass Wiring Diagram - Wiring Sample Oct 13, 2021 · Pioneer parking brake bypass wiring diagram pioneer parking brake bypass wiring diagram every electrical structure is made up of various different parts. I have done it on avh-x8500bhsavh-x5500avh4300dvd avh3200 an avh3300bt. (All Years) - Wiring the Pioneer head unit- Handbrake bypass 1,663 Posts. #13 · Jun 29, 2013 (Edited) The problem seems to be that the 2013 units don't have that delay that allowed the relay to work as a bypass. You should just have to wire a normally closed momentary switch to the parking brake wire instead of the relay (the switch will be placed between the parking brake wire on the head unit and a ...

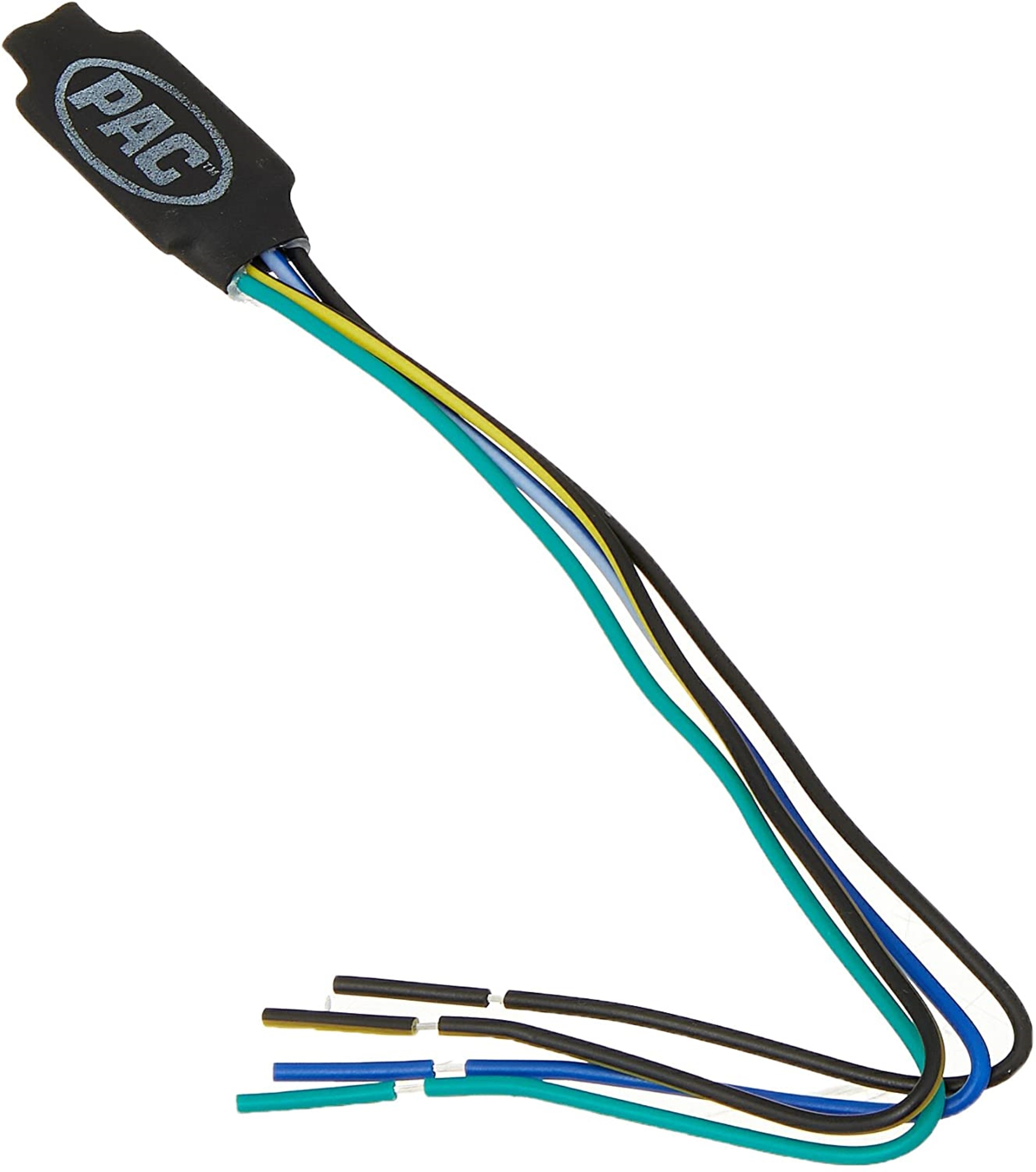

Pioneer Parking Brake Bypass Wiring Diagram Apr 14, 2019 · Pioneer Avic N1 Cpn1899 Wiring Diagram Pioneer Parking Brake Bypass – Pioneer Parking Brake Bypass Wiring Diagram. Wiring Diagram will come with several easy to stick to Wiring Diagram Instructions. It’s supposed to aid all of the typical consumer in building a suitable program. These instructions will likely be easy to understand and use. Pioneer Parking Brake Bypass Wiring Diagram - easywiring Jul 19, 2021 · Pioneer parking brake bypass wiring diagram wiring diagram is a simplified normal pictorial representation of an electrical circuit. 3 easy ways to bypass your parking brake lets make this easy this is a car audio how to tutorial that will show you how to bypass your hand brake parking br. Otherwise the structure won t function as it should be. PDF Brake Bypass Instructions - 3hobbits.com Connect the green wire to the "P. rake" wire of your radio. Summary Connect the black wire to ground Connect the Blue wire to amp-turn on Connect the greenwire to the parking brake wire Plug radio back in to check operation and confirm that the LED (if your bypass is equipped with and indicating LED) on brake bypass is lit green. Pioneer Avh 2550nex Wiring Diagram - easywiring Pioneer parking brake bypass diy how to watch movies on your pioneer avh avh p avh x mvh and dvh video units. Avh 2550nex avh 2500nex dvd rds av receiver important serial number the serial number is located on the bottom of this unit.

PDF Dmh-1770nex Dmh-1700nex the parking brake is set and when the vehicle is moving. If you attempt to use the functions described above while driving, they will become disabled until you stop the vehicle in a safe place, and (1) apply the park ing brake, (2) release the parking brake, and then (3) apply the parking brake again. Please keep the brake pedal pushed down before Pioneer Avh 601ex Wiring Diagram - Wiring Sample Pioneer avh 601ex wiring diagram. Pioneer parking brake bypass diy how to watch movies on your pioneer avh avh p avh x mvh and dvh video units. Avh 500ex avh 501ex avh 600ex avh 601ex for. 19 05 2019 19 05 2019 1 comments on avh 601ex wiring diagram. Pioneer Parking Brake Bypass Procedure ... Pioneer Parking Brake Bypass DIY How To Watch movies on Your Pioneer AVH, AVH-P, AVH-X, MVH, and DVH Video Units. Pioneer know longer uses its old school method of grounding the parking brake wire. They are now hip to our old tricks and require what is called a pulsed input in order to watch movies. Best Free Pioneer Avh 280bt Wiring Diagram Inspirations Print the wiring diagram off plus use highlighters to be able to trace the signal. You can often count on wiring diagram being an important reference that can help you conserve time and cash. Pioneer know longer uses its old school method of grounding the parking brake wire. Non bose wiring pioneer avh 200ex diagram clipart 1778139 pikpng.

Pioneer Mvh-210ex Wiring Harness Diagram - U Wiring AHH-70-1761 Installation Diagram. Pioneer Parking Brake Bypass DIY How To Watch movies on Your Pioneer AVH AVH-P AVH-X MVH and DVH Video Units. Kia Soul Stereo Wiring Diagram Kia Soul Kia Audio System . Pioneer Stereo Wiring Diagram Pioneer Car Stereo Pioneer Car Audio Car Audio

pioneer park brake wire question | Car Audio Forum ... Feb 13, 2011. 586. 1. Apr 11, 2013. #9. I just did this to my avh-p2400bt, bought a $10 relay off ebay that tricks it into working at all times, grounding the parking break wire wont work on Pioneer. grounding pioneer works with toggle switch. I have done it on avh-x8500bhs,avh-x5500,avh4300dvd, avh3200 an avh3300bt.

Pioneer Avh P3300bt Wiring Manual - Wire Fast Wire Radio Parking Brake Bypass For Avh Mvh Pioneer Radios . Car Stereo Wiring Diagram Pioneer Car Audio Pioneer Car Stereo . Pioneer Avh X2800bs Wiring Diagram New Cool Pioneer Avh P6300bt . Harness Pioneer Diagram Wiring Avh200bt Wiring Diagram Data . Vs 5403 Pioneer Avh X1500 Dvd Player Wiring Harness Color Code

Pioneer Parking Brake Bypass Wiring Diagram - Cadician's Blog Apr 14, 2019 · Pioneer Avic N1 Cpn1899 Wiring Diagram Pioneer Parking Brake Bypass – Pioneer Parking Brake Bypass Wiring Diagram. Wiring Diagram will come with several easy to stick to Wiring Diagram Instructions. It’s supposed to aid all of the typical consumer in building a suitable program. These instructions will likely be easy to understand and use.

Pioneer AVH-P5700DVD, brake bypass? - the12volt.com Pioneer AVH-P5700DVD, brake bypass? - I just bought a Pioneer AVH-P5700DVD Reciever, and was wondering what the easiest way to bypass the brake would be so that video will play when the car isn't stopped. I have a 98 Cavalier. Any info would be greatly appreciated...

Microbypass Wiring Diagram - schematron.org Buy MicroBypass Parking Brake Override Bypass for Clarion: Parking Brake to trace down the right color coded wire and find the wiring diagram etc. etc. etc. schematron.org: MicroBypass ALL AVH-X Video In Motion Interface for Select Pioneer Do not install the MicroBypass where the driver may be able to view the.

Pioneer AVH Series Parking Brake Bypass. I have questions ... Joined Sep 12, 2010. ·. 18 Posts. Discussion Starter · #4 · Sep 29, 2010. bimmernut318 said: On a relay ground pins 86 and 87, remote to 85 and 30 to ebrake wire. From the HU wiring, black to chassis, and pin 86 and 87 on a relay, blue remote wire to pin 85 on relay, parking brake wire (green) to pin 30 on relay.

Alpine Parking Brake Bypass Wiring Diagram Users Manual: schematron.org Then the parking brake wire to ground with the other. next you. Buy MicroBypass Parking Brake Override Bypass for Alpine: Automotive - schematron.org It doesn't work on my Alpine ilx the car that I have is a manual.Apr 03, · I just installed an Alpine IVA-D and was going crazy trying to figure out how to make the DVD work and bypass the parking and foot brake wiring.

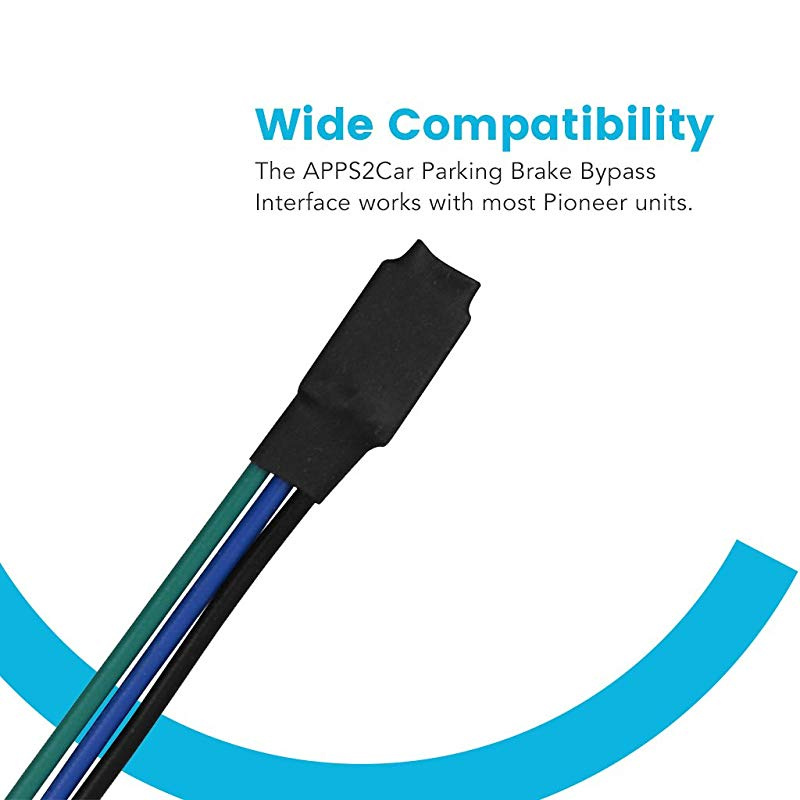

Bypass for a Pioneer DMH-2660NEX! : CarAV - reddit I have the Pioneer DMH 2660NEX, I purchased the APPS2CAR Parking Brake Bypass on Amazon for $9.99 and it works flawlessly. I'm sure there are other models out there that work just as well, however based on the price and hands on experience I can confidently recommend the APPS2CAR.
