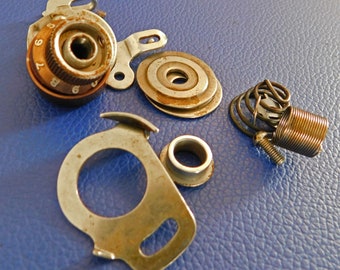

There are many styles of tension assemblies, this is the one used on the Singer 400 series. Once you get the external knob off, you find that all upper tension assemblies are very similar inside. Here is a clip from the service manual telling how to disassemble the 401/403 tension assembly.
Singer 401a tension assembly diagram
On this Singer assembly, it's approximately 22 millimeters (1/8 th of an inch) apart. Also, make sure the bar is lined up with this line right here. Reduce your tension, move the bar in very small increments, test the spring, and adjust as needed. I hope this was helpful. To buy a new tension unit, visit us online at sewingpartsonline.com. If ... Touch & Sew 700 Series. Futura 900 Series Repair Manual 900 - 920 - 925 & Applies to Creative Touch 1030 - 1036. Athena 1200 2000 - Touch Tronic 1060 2000 2005 2001 2010 - Diana 560. Singer 457 466 477 478 Service Manual. $10.95. Service Manual 6100 Series & applies to 7100 Series. $14.00. In this case need loosen a set screw and pull out the tension assembly. To loosen the screw it has to be rotated to left. Take off the thread tension assembly. Grip it with fingers and pull towards you. Parts of thread tensioner of old sewing machine. The first thing what to do you is marking assembly sequence.
Singer 401a tension assembly diagram. Singer Sewing Machine Replacement Light Fits Many Models 15, 15-91, 15-90, 27, 28, 66. $ 22.99. (10) Organ Needles Sharp Point- 15X1 (Available in many different sizes, see below) $ 2.29. Original Style Motor V-Belt Singer (Part # 193066) $ 8.99. Singer Sewing Machine Quarter Inch Foot With Guide Fits Models 15, 66, 99, 201, 221, 222. Singer 401 vs 401A. The main difference between the 401 and the 401A is their manufacturing location. Singer built the 401A models in the States at Anderson, South Carolina. The 401 (sometimes called the 401G) was manufactured overseas in Germany. The two machines do have a few functional differences as well. Singer 401A Built-In Patterns. The cover on the machine contains a partial list of patterns that can be obtained with the 401A's built-in cams. Positioning of the red lever will cause the patterns to vary considerably from this diagram. Also shown in the above image is the access hole where other cams can be used to produce additional stitch ... Discard the old needle and insert a new needle, appropriate for the thickness and type of fabric being sewn. Needles can also break if you are "pushing" or "pulling" the fabric while sewing, as this causes the needle to deflect. The feed dogs (or feed teeth) are actually designed to do the work of drawing the fabric under the foot as ...

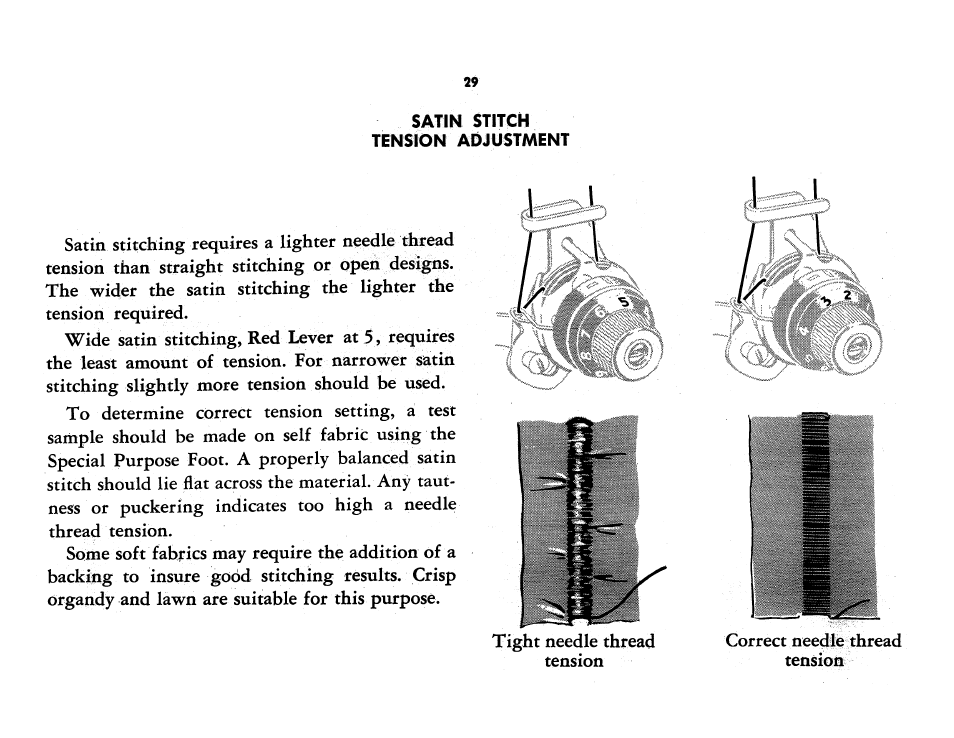

These parts and accessories are guaranteed to fit your Singer 401A Sewing Machine. Sort By…. Newest Best Selling Lowest Price Highest Price Name (A-Z) Name (Z-A) Previous 1 2 3 Next. $3.99 $2.49. Save 38%. Bobbin Winder Tire, Multi Brand #15287-A. Taking the tension assembly a part is often unnecessary. All the experts will tell you this. I still tend to do it. I like getting these parts really clean and I don't find it all that difficult. Especially on these old machines. I have not taken the tension apart on the 401A nor any of my 301s. Singer® Parts Lists: If you have any questions or need assistance in finding a part, please just drop us a note through our Contact Us page and our experienced sales staff will assist you. Singer® Parts Lists: Click Machine Model to open parts list in a new window. and Fig. 5, page 6) at the front of the tension discs over to the right to increase the tension. To decrease the tension, turn the thumb nut over to the left. FIG 16. NEEDLE THREAD TENSION The tension on the bobbin thread is regulated by the larger screw (Fig. 4) which is nearest the back in the bobbin case tension spring.
Singer 401, 403, & 404 Service Manual. Singer 401, 403, & 404 - Seductively Smooth. Right-click to download: Note: If you are an eBay parasite who downloads free manuals and then sells $10 "electronic copies" of a file (that you neither scanned, printed, or bound) to unsuspecting people, rest assured that Santa will hear about it - and ... Wiring diagram. Parts list. Much more! 42 page complete service manual plus a 2 page parts manual with diagrams. This is a Service Manual. If you need the instruction manual, please visit our shop here. Singer 401-401a Sewing Machine Service-Parts Manual Singer 401a Vintage Sewing Machine For Parts Or Repair As Is Singer 401 type hook sewing machine parts diagram with images singer 401a parts list singer 401a tension assembly diagram google search with images singer 417 401 type hook mechanical sewing machine parts sears. Whats people lookup in this blog: Singer 401a Replacement Parts Once full, the bobbin will automatically release and you just tighten the screw again. If you need diagrams click here. How to Use a Singer 401A Sewing Machine. The best way to use this old sewing machine is to follow all the instructions carefully. Then make sure to use a 15-1 needle sizes 9, 11, 14, 16 & 18 only.
SINGER Model Numbers & Parts Breakdown. Model 1 - 1999. Model 200-2999. Model 300-3999. Model 400-4999. Model 500-5999. Model 600-6999. Model 700-7999. Model 800-8999.
I didn't recognize the cabinet as Singer, and figured it would contain a Japanese machine of the 1960s. To my surprise, when I lifted the lid, inside was a Singer 401a! I think I've told this story before, but a Singer 301 was my first machine and a 401 was my second machine and my first zig zag machine.
I volunteered to do a post specifically for the 301 tension assembly. Here it is. A bit of anatomy first: Open the face plate and look inside. Here you will find the tension release spring which is attached to the tension release lever (the lever that lifts the presser foot); the tension release pin and the set screw.
Schematic diagram tension assembly 401A Singer sewing machine. Posted by Donald on September 23, Posted in: Free Manuals. 46 Comments Now I found a Singer a in a table, complete, in good condition. the moving parts should be grey, silver or greasy black. If they are covered in a brown shellac-looking gunk, you have a varnish problem. SINGER App ...
How to Fix a Singer 401A. This is a vintage machine and it may have been one of the last to have all metal parts. The key to fixing this sewing machine model is to make sure you get the right parts for it. If the tension knob is stuck, you can loosen it up with a little oil but be careful when using non Singer lubricants.
Singer Model 401A Adjusters Service And Repair Manual. Covers Models 401-A Includes great diagrams showing you step by step how to set your rotating hook, adjust the feed dog, Remove and replace the bobbin winder and much more! This manual also show all the lubrication points so you can service your machine yourself and save a lot of money.
For Sale. Professional Full Edition Service Manual for Singer 401 & 401A Sewing Machines.: $25.85. Complete Service Manual for SINGER 401, 401A SEWING MACHINES ********* Includes: Timing and Adjusting Instructions, Inspection and Replacement of Machine Parts, Electrical Diagrams, Illustrations, Repair and Replacement of Motor Components, and ...
More like this. This post is my latest update for my restoration attempt on my 1948 Singer sewing machine. Here are part 1, part 2, and part 3. So to quickly recap, I have removed all the electrical components on …. Replica for Singer 221, 222, 301 and many more Singer Models The standard tension is set at 3-4 for quilter's cotton weight ...
Singer Sewing Machine Parts Schematics / List Note: These are not Owners or Service Manuals All schematics are download only - no shipping involved - you will not be sent a hard copy - there are no refunds for downloaded material - schematics are as received - some may have been redacted to reduce file size for downloading - if you are not sure about what to download - ask first - 500 & 800 ...
Singer Tension Dial Assembly for Model 401, 401A, 403, 404 For Singer Models: 1247, 1263, 1280, 1288, 1802, 1803, 1812, 1852, 1862, 1872, 1873, 237, 239, 240, 2404 ...
BLOGhttp://www.christophernejman.blogspot.com
In this case need loosen a set screw and pull out the tension assembly. To loosen the screw it has to be rotated to left. Take off the thread tension assembly. Grip it with fingers and pull towards you. Parts of thread tensioner of old sewing machine. The first thing what to do you is marking assembly sequence.
Touch & Sew 700 Series. Futura 900 Series Repair Manual 900 - 920 - 925 & Applies to Creative Touch 1030 - 1036. Athena 1200 2000 - Touch Tronic 1060 2000 2005 2001 2010 - Diana 560. Singer 457 466 477 478 Service Manual. $10.95. Service Manual 6100 Series & applies to 7100 Series. $14.00.
On this Singer assembly, it's approximately 22 millimeters (1/8 th of an inch) apart. Also, make sure the bar is lined up with this line right here. Reduce your tension, move the bar in very small increments, test the spring, and adjust as needed. I hope this was helpful. To buy a new tension unit, visit us online at sewingpartsonline.com. If ...
