Diagram 1998 Chevy Tahoe Radio Wiring Full Version Hd Quality. Transmission Chevrolet Forward Control P30 1998 System Wiring Diagrams For Cars. Diagram 1998 Silverado Trailer Wiring Full Version Hd Quality. Gm Full Size Trucks 1980 1987 Wiring Diagrams Repair Guide Autozone. Diagram 1998 Chevy Venture Fuel Pump Wiring Full Version Hd Quality. I am sitting with an inoperable motor home at Lake Tahoe. This is a 1987 Chevrolet P30 chassis built into a 1988 Holiday Rambler Alumalite XL class A motor home. The sparse wiring diagrams of sub-systems will not work for this fault which appears to be somewhere in the wiring harness. Without diagrams, I cannot chase the problem.

Auto Park Brake Information. New Hours!! Mon - Fri 6:00 am - 4:00 pm PST. Call Toll Free 800-417-4559. Or Text us at 360-736-2158. AUTOMATIC APPLY PARKING BRAKE. The parking brake on the P Series 16,500 lb., 17,000 lb., 18,000 lb. as well as the W Series 18,000 lb. and 24,000 lb. GVWR chassis incorporates a unique automatic apply feature.

P30 auto park brake diagram

Chevrolet P30 Parking Brake Cable. Chevrolet P30 Radiator Hose. Chevrolet P30 Ring and Pinion. Chevrolet P30 Serpentine Belt. Chevrolet P30 Shock Absorber and Strut Assembly. ... Helpful Automotive Resources. Spotted: Heavily Camo-ed Chevy Silverado Prototype For the coming model year, General Motors announced it will be launching an all-new ... The primary electrical fuse and relay panel box is situated just behind the 12V automotive battery and in front of the brake fluid reservoir. Push In Left Release Tab: Push In Front Right Tab: Release Rear Clip: There are three retaining clips holding the fuse box cover in place. parking brake is configured). This lever relay is located on the DRIVER SIDE frame rail, near the transmission. Coaches which have BOTH the Autopark on the shift lever (PARK position), as well as a manual foot pedal for the parking brake (located to the left of the steering column), will have two levers. Later versions which have NO foot pedal,

P30 auto park brake diagram. RockAuto ships auto parts and body parts from over 300 manufacturers to customers' doors worldwide, all at warehouse prices. Easy to use parts catalog. 1996 CHEVROLET P30 7.4L V8 Parking Brake Cable | RockAuto ChiltonDIY online P30 repair manuals cover automotive service and repairs, from diagnostic trouble codes and probable causes, electronic engine controls, and maintenance schedules, to brake and suspension issues, wiring diagrams and engine repairs, tune-up procedures, specifications, clutch and gearbox diagrams, and more. Remove the guesswork ... Direct replacement - this parking brake cable equalizer matches the fit, function and performance of the original manufacturer cable Restores performance - enables proper operation of parking brake by equalizing cable tension. $13.32. ACDelco® GM Original Equipment™ Driveline Parking Brake Shoes (171-772) 0. Chevrolet P30 Brake Bleeder Screw. Chevrolet P30 Brake C Washer Or Clip. Chevrolet P30 Brake Cable. Chevrolet P30 Brake Drum - Rear. Chevrolet P30 Brake Drum All-In-One Kit. Chevrolet P30 Brake Drum Bar. Chevrolet P30 Brake Drum Self-Adjusting Kit-Rear. Chevrolet P30 Brake Hold Down Spring. Chevrolet P30 Brake Hose.

Purchase Used Toyota Tacoma Parts with upto 60% savings. All Parts come with 1 year warranty. Call 877-247-1717 for details. How the Chevrolet or Workhorse parking brake works. When the transmission selector is in "park", the parking brake is applied. The parking brake is a drum brake located on the back of the transmission. The brake is applied two ways. First, one might press the parking brake pedal. The other way is the dreaded auto parking brake mechanism. Our goal here at rvAutoPark.com, is to supply information that will help coach owners troubleshoot and repair their Chevy P32 Workhorse Chassis, J71 Ver II Auto Park Brake System, as well as other versions. Is your AutoPark actuator cylinder leaking? - - we can help. We realize however, that in some cases and for whatever reason, there are ... Shop Genuine Chevrolet P30 Parts. Buy Chevy P30 parts now, at wholesale prices - direct from GM. Give your Chevrolet the best Parking brake parts possible: OEM Chevy parts. Genuine Chevy Parts are engineered specifically with your Chevrolet P30 in mind, ensuring precise fit and flawless function that lasts mile after mile.

Up to 75% off new Chevrolet P30 Parts! In stock, ready to ship, and covered by our 30-Day Quality Guarantee. My Account Track Order. Select Vehicle. ... P30 Disc Brake Pad 84 Chevrolet P30 Drum Brake Shoe 25 Chevrolet P30 Drum Brake Wheel Cylinder 21 Chevrolet P30 Parking Brake Cable 15 Chevrolet P30 Parking Brake Shoe 4 ... UltraStop J71 & J72 Auto Park Brake Upgrades. Refine Search. Workhorse. W18 . P32 1996-2000 . P32 2001-2004 . P32 2005 W/J72 Park Brake . W24 W/J72 Park Brake . Freightliner. Fred Chassis . Chevrolet. P32 1996-2000 Chassis . Clear Filter Refine Search. Search within Filtered Results ... Home - GMCMI Switch, park brk actr posn (attaches to brkt & lever asm below strg column) (auto apply parking brake system is activated by electric pump w/indicator light on i/p. ) * In the column 'A' indicates the number that is used in the selected vehicle. - To find out where to buy the item or analog, click on price.

Parking Brake Assembly Help Mbworld Org Forums

This is how I fixed the emergency break actuator on my '98 Allegro motorhome for $20.

Adem 3 Ecm Installed On Cat And Perkins 2300 Pdf Pdf Vehicle Technology Land Vehicles

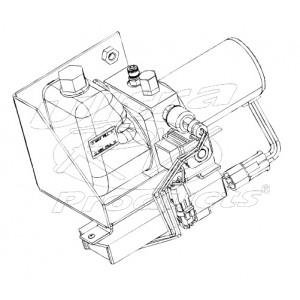

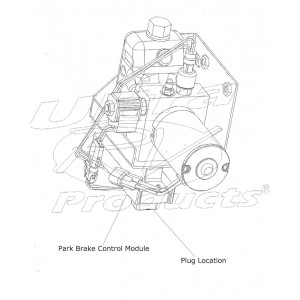

15018962-USP12 - P12 Park Brake Pump Assembly With Motor (Aftermarket) Part# 15018962-USP1.. $1,874.50 $1,642.39. Add to Cart. Add to Wish List. Compare this Product. QuickView.

1997 Chevrolet P30 Service Repair Manual Software Workshop Manuals Australia

I have a 1998 P30 with the auto brake system ( it has a yellow button at the bottom of the dash ) when you set the brake by putting in park or pulling out the button is it setting the brakes on the motorhome, are a brake on the drive line.

Solved Where Can I Get Fixya

Posted By: dannycat on 11/19/04 07:02am I need some help I have a 34j Bounder on a 1996 chev P30 chassis and I need to know the part # and where the pressure switch is located for the auto park brake.

Auto Park Brake

Auto Parts ∕ Brakes and Traction Control ∕ Drum Brake System. Chevrolet P30 Rear Drum Brake. Buy Online. Pick Up In-Store. FILTER RESULTS. PRICE. Set custom price range: to. $90 - $100 (1) $100 - $125 (2) $175 - $200 (1) RATING

Parking Brake Assembly Help Mbworld Org Forums

The parking brake on the 16,500#, 17,000#, and 18,000# GVWR chassis incorporates a unique automatic apply feature with an internal expanding parking brake. The parking brake is spring applied and hydraulic released. The electric/auto parking system controls the propeller shaft-mounted parking brake.

Okay I Solved The Auto Park Brake Problem Page 2 Irv2 Forums

I successfully replaced my defective J72 Auto Park brake with a direct fit manual hand brake. This is the same E brake that GM Workhorse has used on there step van chassis ie. bread trucks, service vans for years. When our Auto Park failed and caught fire. The replacement from WH was going to cost $2,400 just for the brake assembly alone.

Car Truck Condensers Evaporators Hy3030160 A C Condenser For 15 16 Hyundai Sonata Motors

Chevy P30 Chassis - J71 Auto Park Brake Revision Our motorhome has a 1998 Chevrolet P30 chassis with the J71 auto park brake. This means that we, along with many others with the Chevy P30 chassis with the J71, have experienced the sudden, and scary, engagement of the park brake while driving—the dreaded Chevy P30 park brake failure.

Obd Ii Codes Oemys Performance Com Obd Ii Codes Oemys Performance Com Pdf Pdf4pro

auto park brake nightmare FIX or resolved issue Part 3Please, support this channel, most videos, google has restricted for monetization; please consider a re...

Autopark Parking Brake System Pump Motor Relay Locating Troubleshooting And Testing Rvautopark Com Chevy P32 Workhorse Chassis J71 Version I Ii Iii Auto Park Brake System Troubleshooting Repair Motor

I have read many posts of the P30 Auto-Park brake system. ... = what is part 1,2,3 below in procedure. print down the picture and you will have a diagram EMERGENCY RELEASE OF PARKING BRAKE--MOTOR HOME CHASSIS ( FROM THE BOOK FROM WORKHORSE ). ... but our 1999 bounder blew a fuse for the auto park brake at over 60 mph on the highway. spent three ...

1989 Chevy P Chassis Wiring Diagram Original Motorhome Step 1989 Chevy R V P Pickup Truck Suburban Van Original Wiring Diagrams

January 2014/March 2014 revisions - Jerry Peck (See Disclaimer on last page) - Page 4 of 29 Chevy P30 Chassis - J71 Auto Park Brake Revision Steps 3 through 9—Removal of park brake unit as a single assembly After disconnecting the park brake unit from the cable, as stated in Step 2 on previous page: 3) Disconnect the 2 plug-in connectors (Item 1 in photo above) that connect the park brake ...

Workhorse Parking Brake Diagram Jobs Ecityworks

W24 Park Brake Failure: av42: Workhorse and Chevrolet Chassis Motorhome Forum: 27: 07-01-2013 10:19 AM: J72 Auto Park manual replacement: dalehelman: Workhorse and Chevrolet Chassis Motorhome Forum: 34: 05-10-2012 09:42 AM: Park Brake Upgrade: TOMF1936: Workhorse and Chevrolet Chassis Motorhome Forum: 15: 07-11-2011 09:07 AM: No Cruise, No ...

Auto Park Brake Nightmare Fix Or Resolved Issue Part 1 Youtube

parking brake is configured). This lever relay is located on the DRIVER SIDE frame rail, near the transmission. Coaches which have BOTH the Autopark on the shift lever (PARK position), as well as a manual foot pedal for the parking brake (located to the left of the steering column), will have two levers. Later versions which have NO foot pedal,

Auto Park Brake

The primary electrical fuse and relay panel box is situated just behind the 12V automotive battery and in front of the brake fluid reservoir. Push In Left Release Tab: Push In Front Right Tab: Release Rear Clip: There are three retaining clips holding the fuse box cover in place.

Mico Product Training Session 9 Hydraulic Brake Locks Youtube

Same 2000 Allegro Auto Park Not Working Light Stays On All The Time I Checked What I Think Is The Reservoir And It

Understanding How Auto Park Parking Brake Shoes Are Adjusted Rvautopark Com Chevy P32 Workhorse Chassis J71 Version I Ii Iii Auto Park Brake System Troubleshooting Repair Motor Home Support Web
