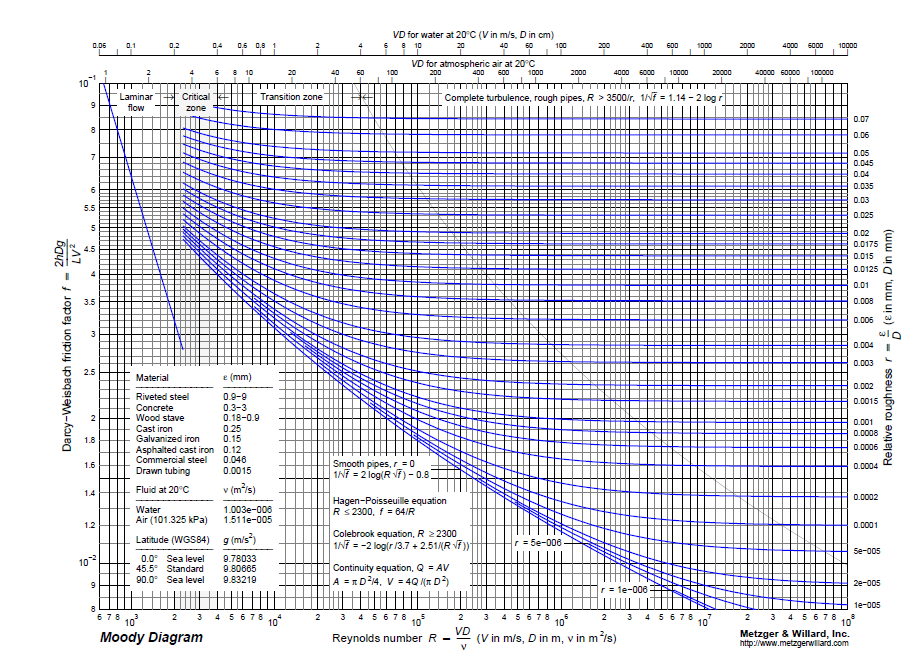

Explains how to read a Moody chart for determining frictional factors in pipe flow problems. Made by faculty at the University of Colorado Boulder, Departmen... SI based Moody Diagram. The Moody friction factor - λ (or f) - is used in the Darcy-Weisbach major loss equation. The coefficient can be estimated with the diagram below: If the flow is transient - 2300 < Re < 4000 - the flow varies between laminar and turbulent flow and the friction coefiicient is not possible to determine.

About Press Copyright Contact us Creators Advertise Developers Terms Privacy Policy & Safety How YouTube works Test new features Press Copyright Contact us Creators ...

How to read a moody diagram

This is the first time I've encountered a Moody Diagram so I am not too experienced with the layout. 1) the red line is in the wrong place for Reynolds number of 2.11x10 4. Check again. 2) The orange line should follow the relative roughness curve until it crosses the red line. i.e. Q3: Explain in plain words, how a moody diagram for finding friction factor for turbulent flow is read? Explain the graph and how to use it? Consider two tanks connected by a 3inch and a 6inch dia pipe (3 inch pipe enlarged into the 6 inch pipe). Both the Reynolds number and relative roughness are unitless values when computed correctly, therefore the Moody Chart is unitless, so the same chart applies to US Customary and SI unit systems. Another common mistake when reading the Moody Diagram is improper interpolation between lines and points.

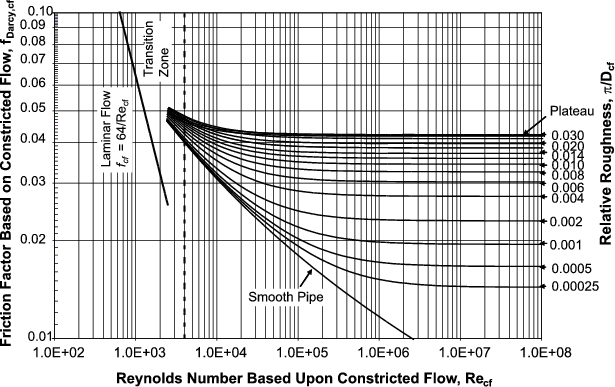

How to read a moody diagram. Moody chart (diagram) The Moody diagram is a chart showing the Darcy friction factor of a pipe as a function of the Reynolds number for selected roughnesses of the pipe wall. 1 Pressure loss. 1.1 Friction factor for laminar pipe flows. 1.2 Friction factor for turbulent pipe flows. 2 Moody chart. An introduction to the famous Moody Chart! We use the Moody Chart often to estimate frictional factors. To download the notes I use for these videos, please ... In this video I walk you threw reading the Moody diagram. The moody diagram is useful in obtaining the friction factor for a closed pipe system. I cover how to estimate the pressure drop due to frictional losses in a pipe using Moody diagrams, Reynold's number, and the pressure drop equation.

Both the Reynolds number and relative roughness are unitless values when computed correctly, therefore the Moody Chart is unitless, so the same chart applies to US Customary and SI unit systems. Another common mistake when reading the Moody Diagram is improper interpolation between lines and points. Q3: Explain in plain words, how a moody diagram for finding friction factor for turbulent flow is read? Explain the graph and how to use it? Consider two tanks connected by a 3inch and a 6inch dia pipe (3 inch pipe enlarged into the 6 inch pipe). This is the first time I've encountered a Moody Diagram so I am not too experienced with the layout. 1) the red line is in the wrong place for Reynolds number of 2.11x10 4. Check again. 2) The orange line should follow the relative roughness curve until it crosses the red line. i.e.
