Step 1 - Identify the neutral safety switch which is located on the left side Neutral Safety Switch - Wiring Harness Disconnected (Appearance. Im in the middle of making a new harness for my 95 swap 5speed to 4l80e. As most harnesses from the junk yard, my neutral safety switch. Manual Lever Position Switch 4L60E 95 to - 4L80E 94 to Best ... Where Is The Neutral Safety Switch Located At On A 2009 Chevrolet - Neutral Safety Switch Wiring Diagram Chevy. Wiring Diagram arrives with several easy to adhere to Wiring Diagram Directions. It is intended to assist each of the common person in creating a suitable system. These guidelines will likely be easy to understand and apply.

NEUTRAL/PARK START SWITCH WIRING CONNECTION The following paragraphs describe the procedure to locate the neutral safety switch and back-up light switch on most vehicles and how to identify the wires needed to connect to the PRO/MATIC2™ shifter. See Page 7 for diagram. MOPAR AND AMC APPLICATIONS - 1963-1966 The original equipment neutral ...

B&m neutral safety switch wiring diagram

gauge wire. Connect post 85 to the N.C. terminal on the new safety switch. Connect post 30 to either wire on the solenoid. The other solenoid wire goes to Ground. There is a new safety switch supplied with this unit. Install this switch in place of the original B&M Neutral safety switch. Neutral Safety Switch Wiring Diagram. Usually the neutral safety switch is connected to the starter solenoid on the ground side. It is intended to assist each of the common person in creating a suitable system. If you havent run any wiring yet run a wire from the ign switch start terminal to one side of the neutral saftey switch. 4&5)The shifter is a Megashifter for the 82-92 Camaros, so I believe it has both switches. 1984 Monte Carlo SS - currently taking a long-term nap. 2000 Dodge Ram 2500 Cummins Turbo Diesel. #649040 - 02/14/09 08:40 PM Re: neutral safety switch wiring for a Megashifter [ Re: The_Madness ] Joined: Nov 2002.

B&m neutral safety switch wiring diagram. The B&M Megashifter shifter can be used in vehicles equipped with most ... have a neutral safety switch, disconnect ... switch to the switch on the shifter. If you have a mechanical interlock cut the wire that goes from the start position on the ignition switch to the solenoid on the correctly adjusted. Install the cotter The neutral safety switch and reverse lights are not hooked up (previous owner). I ordered the switches for the B&M shifter but have read the NSW may not handle the power needed to start the car and that you may need a relay. B&M neutral/reverse safety switches are the perfect safety devices for your car. They will only allow your car to start when it is in park or neutral, not while it is in gear. If it starts in gear, you can imagine the damage that could be done. They can also be used to turn on your backup lights when your car is in reverse. Guys I need a hand; does anybody know how to wire a VN VP neutral safety/reverse light switch to a B&M Megashifter please. There are 4 wires on the commo switch, black, pink, green and grey and the B&M has 4 bayonet connections I think the green is reverse and the pink is neutral safety but not sure how it should be wired up.

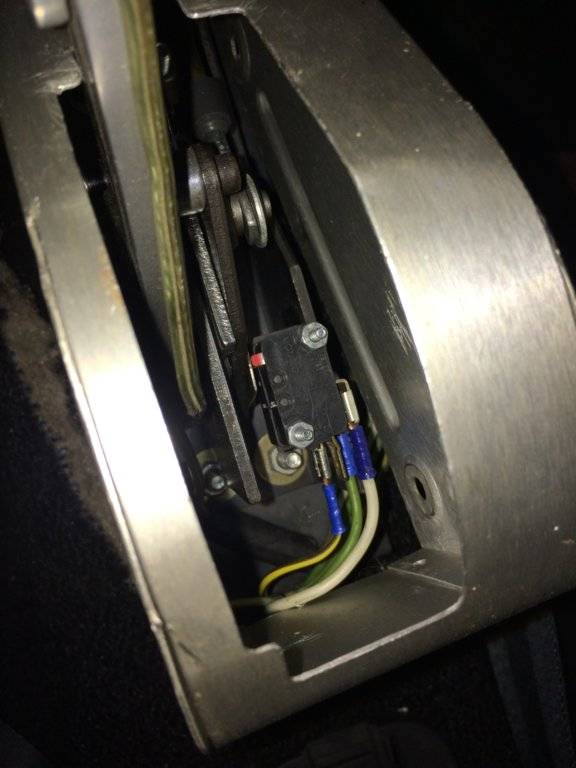

The switches attach to the shifter on the side (you will need to supply your own screws, because b+m sucks so bad) and work by a simple sliding gate opening or closing the switches. The bottom switch is for neutral safety and the upper switch is for reverse. The wiring diagram couldn't be simpler. I even colour coded it! Here's what I do on any rod that uses a B&M shifter: the switch is used as a ground path. You will use a Bosch or simular quality 30/40 amp relay. From your ignition switch 'start', to the '30' leg. From the '87' leg, to your starter. For the '86' leg, you go to some ignition sourced feed- maybe from the ignition switch itself. B&M NEUTRAL SAFETY SWITCH). NEW SAFETY SWITCH. (MOUNTS ON SHIFTER. IN PLACE OF THE ORIGINAL. B&M NEUTRAL SAFETY SWITCH). 87a. 87a. NEW. NEUTRAL. SAFETY.4 pages wire. Connect post 85 to the N.C. terminal on the new safety switch. Connect post 30 to the solenoid. There is a new safety switch supplied with this unit. Install this switch in place of the original B & M Neutral safety switch. This switch MUST be used so the shifter cannot be electrically activated while in Park or Neutral.

9 Nov 2006 · 4 posts · 2 authorsPast posts and the B&M instructions say to cut wires for the stock set-up and to ... to the wiring diagram in NastyZ) is the neutral safety. 1. Pre-wire Hurst neutral/park start switch (front switch located on shifter assembly).Nov 11, · I removed the factory column switch and figured out how to rewire for the back-up lights. There are two plugins on the column switch. One is for the back-up lights and the other (according to the wiring diagram in NastyZ) is the neutral safety. Neutral/Park Start Safety Switch For Hurst Quarter Stick® Shifters Rev 02/18/2020 2. Prewire the switch using 2 supplied female crimp connectors and two suitable lengths of 16 gauge, insulated automotive grade wire. Crimp a connector to one end of each wire, then push onto each switch terminal. See illustration below. 1. Back-Up Light Switch 524378d1465844311 b m starshifter wiring image. BF_8354 Valve Body On 4L60E Transmission Neutral Safety Switch Wiring Diagram Free Diagram. 4l60e neutral safety switch wiring diagram as well park neutral. GMT400 Auto To Manual - Rewiring Reverse Light Switch Cummins 4BT \u0026 Diesel Conversions Forums ... Geo Metro Wiring Diagram Neutral ...

How To B M Pro Ratchet Shifter Install Ls1tech Camaro And Firebird Forum Discussion

B&M Neutral/Reverse Safety Switches. B&M neutral/reverse safety switches are the perfect safety devices for your car. They will only allow your car to start when it is in park or neutral, not while it is in gear. If it starts in gear, you can imagine the damage that could be done.

3 Pole Starter Solenoid

Shout out to talon4wd for helping me out.

Need B M Floor Shifter Wiring Help El Camino Central Forum

23 Jun 2004 — I finally decided that it would be nice to have my neutral safety (NSS) ... I took the new wires from the new B&M shifter and plugged them ...

B M 80841 Pro Ratchet Shifter User Manual

• If there are (2) connections for a neutral safety switch, you must run a #12 (or heavier) stranded wire from these terminals to the (2) terminals on the Lokar Neutral Safety Switch. That completes the neutral safety switch wiring. • If your fuse panel does not have neutral safety switch connections, you

2

Assortment of lokar neutral safety switch wiring diagram. A wiring diagram is a simplified conventional photographic representation of an electric circuit. It shows the components of the circuit as simplified forms, and the power and signal connections between the devices.

Test An Automotive Neutral Safety Switch Gear Range Sensor

Neutral Safety Switch. A switch installed in the wire between the ignition switch and the starter solenoid. It connects or interrupts the flow of electricity from the battery to the solenoid that energizes the starter. The switch is activated or deactivated by the shift lever allowing the engine to be cranked in neutral or park and prevented ...

Neutral Start Switch Reverse Switch Inputs Patrol 4x4 Nissan Patrol Forum

Discussion Starter · #5 · Sep 27, 2011. trans neutral safety switch. I`m having trouble hooking up my neutral safety switch on my B&M floor shifter on my 56 chev. that I converted from stick shift to auto 350 trans. I installed wire from safety switch on shifter to terminal on solenoid and made sure my neutral switch is adjusted perfectly.

How To Do The Bosch Relay Mod The Subaru Svx World Network

Going back to your yellow wire Purple thing. I stuck my head under the dash of my 77 1 ton and couldn't get a good look at the wiring on the switch and someone took the clutch safety switch out years ago it appears. This diagram should match your switch and according to it the purple wire is the solenoid wire that should run to the safety switch.

B M Pro Ratchet Shift Wiring Ls1tech Camaro And Firebird Forum Discussion

7105 B M Neutral Safety Switch Wiring Diagram Wiring Resources Which Wires To Splice To Bypass Nss On 93 Xj Jeep Cherokee Forum Bd5f9 Neutral Switch Wiring Diagram For 1987 Digital Resources 4l80e Neutral Safety Switch Wiring Diagram Today Wiring Neutral Safety Infinitybox Ford F250 Neutral Safety Switch Wiring Diagram Wiring Diagram ...

B M Megashifter Relay Wiring Bypass Question Third Generation F Body Message Boards

The neutral safety switch goes in the starter circuit. Path goes from a 12V source, starter switch (often included as part of the ignition switch), through the neutral safety switch, and to the starter solenoid. Not really rocket science. By the way, Ford automatic transmissions usually have the switch attached to the transmissions, which has ...

Nss Reverse Light Help The 1947 Present Chevrolet Gmc Truck Message Board Network

The shifter is a New B&M hammer shifter and the neutral safety switch is supplied as part of the kit. As before the wires on the micro switch are tiny and the wire from the ignition a 10 awg, it just doesn't make sense, to me at least, that the two wires would or should be connected, unless again I'm missing the obvious.

2

the blue wire is the hot wire,,the green goes to the backup lights.. the blue wire is fused allready,,looking at the diagram,, the only thing you are changing is the location of the switch,, unplug them from the old switch,,plug them in to the new switch.. you will need to make the wires longer..

Quicksilver Wiring In Firebird

Just showing how to install the switches on the Pro Stick not how to hook up the electrical. You will need 2 4-40 screws 1 inch long to bolt them both togeth...

G Body Wiring

The B&M QuickSilver Shifter can be used in most vehicles equipped with three speed or four speed automatic transmis-sions. Your B&M QuickSilver Shifter comes equipped with a neutral safety switch and a backup light switch, trans-mission brackets, levers and a five foot shift cable. Optional shifter cables in 2 ft. (#80830), 3 ft. (#80831), 4 ft ...

B M Ratchet Shifter No Reverse Light Team Chevelle

4&5)The shifter is a Megashifter for the 82-92 Camaros, so I believe it has both switches. 1984 Monte Carlo SS - currently taking a long-term nap. 2000 Dodge Ram 2500 Cummins Turbo Diesel. #649040 - 02/14/09 08:40 PM Re: neutral safety switch wiring for a Megashifter [ Re: The_Madness ] Joined: Nov 2002.

B M Megashifter Wiring Issues Third Generation F Body Message Boards

Neutral Safety Switch Wiring Diagram. Usually the neutral safety switch is connected to the starter solenoid on the ground side. It is intended to assist each of the common person in creating a suitable system. If you havent run any wiring yet run a wire from the ign switch start terminal to one side of the neutral saftey switch.

Routing Neutral Safety Reverse Light Wires On B M Pro Stick For A Bodies Only Mopar Forum

gauge wire. Connect post 85 to the N.C. terminal on the new safety switch. Connect post 30 to either wire on the solenoid. The other solenoid wire goes to Ground. There is a new safety switch supplied with this unit. Install this switch in place of the original B&M Neutral safety switch.
