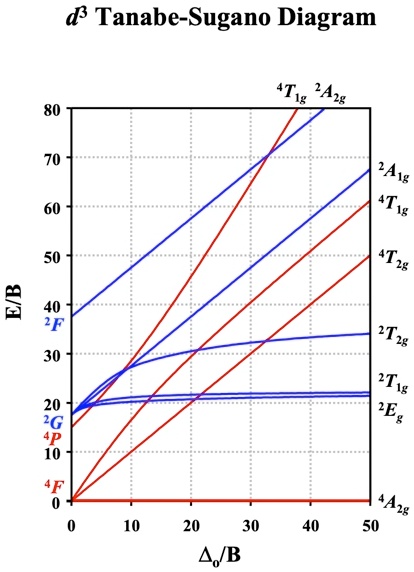

Using a Tanabe-Sugano diagram for a d3 system this ratio is found at Δ/B=24.00. Tanabe-Sugano diagram for d3 octahedral complexes. Interpolation of the graph to find the Y-axis values for the spin-allowed transitions gives: ν1/B=24.00 ν2/B=33.90 ν3/B=53.11 Recall that ν1=17000 cm-1. Therefore for the first spin-allowed transition, Tanabe-Sugano Diagrams diagrams diagrams are used in coordination chemistry to predict electromagnetic absorptions of metal coordination compounds of

9.12: Tanabe-Sugano Diagrams. Tanabe-Sugano diagrams are used in coordination chemistry to predict electromagnetic absorptions of metal coordination compounds of tetrahedral and octahedral complexes. The analysis derived from the diagrams can also be compared to experimental spectroscopic data. Armed with spectroscopic data, an approximation to ...

How to use tanabe sugano diagram

d2Tanabe-Sugano Diagram E / B ∆o/ B 3F 3P 3T 1g (3P) 3A 1g 3T 2g (3F) 3T 1g ~15B ~∆o ~∆o E1 E2 E3 E is the energy of the excited state relative to the ground state B is the Racah parameter for e–-e–repulsion The example on page 427 of your text shows how to use this chart to fit the experimental data (E1, E2, and E3) for [V(OH2)6]3+to ... Lecture 4 May 11: Tanabe Sugano Diagrams A Tanabe-Sugano (TS) diagram plots the energy dependence of the various ligand field states (or terms) with field strength. The strength of the ligand field is defined by Dq, which is related to the octahedral crystal field splitting by 10Dq = ∆o. The energy of the state is given by E. Example of the use of Tanabe -Sugano Diagrams. For the use of Tanabe-Sugano diagrams we will be using Tables .1 and 17.2 17 (see the resources for Test ). 10 Dq. o = f. x . g. Let us consider the complex 3 Co(NH. 3) 6 2+. The oxidation state of the cobalt is +2, so the themetal isconsidered a d. 7. To figure out 10 Dq. o (also known as delta ...

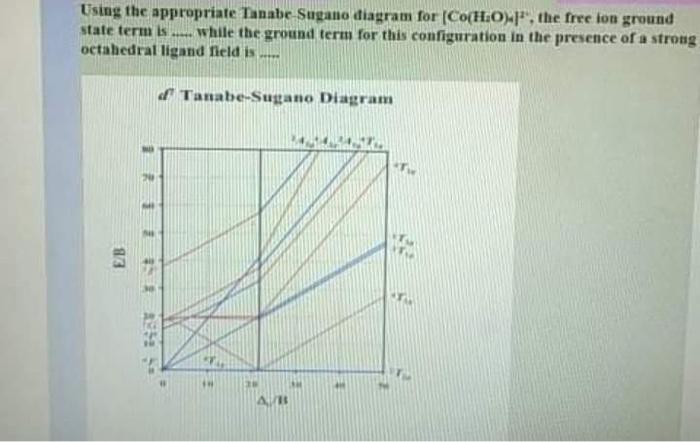

How to use tanabe sugano diagram. Tanabe-Sugano diagrams can be used for both high spin and low spin complexes. Tanabe-Sugano diagrams can also be used to predict the size of the ligand field necessary to cause high-spin to low-spin transitions. In a Tanabe-Sugano diagram, the ground state is used as a constant reference. The energy of the ground state is taken to be d7Tanabe-Sugano Diagram E / B ∆o/ B 4F 2G 2Eg 2T1g 2A1g 2T2g 4P 4A 2g 4T 1g ( 4P) 4T 2g 4T 1g ( 4F) Complexes with d4-d7 electron counts are special •at small values of ∆o/B the diagram looks similar to the d2diagram •at larger values of ∆o/B, there is a break in the diagram leading to a Tanabe-Sugano Diagrams diagrams diagrams are used in coordination chemistry to predict electromagnetic absorptions of metal coordination compounds of Tanabe–Sugano diagrams are used in coordination chemistry to predict absorptions in the UV, visible and IR electromagnetic spectrum of coordination ...

Tanabe-Sugano Diagrams. Tanabe-Sugano diagrams are used in coordination chemistry to predict electromagnetic absorptions of metal coordination compounds of tetrahedral and octahedral complexes. The analysis derived from the diagrams can also be compared to experimental spectroscopic data. Armed with spectroscopic data, an approximation to the ... Example of the use of Tanabe -Sugano Diagrams. For the use of Tanabe-Sugano diagrams we will be using Tables .1 and 17.2 17 (see the resources for Test ). 10 Dq. o = f. x . g. Let us consider the complex 3 Co(NH. 3) 6 2+. The oxidation state of the cobalt is +2, so the themetal isconsidered a d. 7. To figure out 10 Dq. o (also known as delta ... Lecture 4 May 11: Tanabe Sugano Diagrams A Tanabe-Sugano (TS) diagram plots the energy dependence of the various ligand field states (or terms) with field strength. The strength of the ligand field is defined by Dq, which is related to the octahedral crystal field splitting by 10Dq = ∆o. The energy of the state is given by E. d2Tanabe-Sugano Diagram E / B ∆o/ B 3F 3P 3T 1g (3P) 3A 1g 3T 2g (3F) 3T 1g ~15B ~∆o ~∆o E1 E2 E3 E is the energy of the excited state relative to the ground state B is the Racah parameter for e–-e–repulsion The example on page 427 of your text shows how to use this chart to fit the experimental data (E1, E2, and E3) for [V(OH2)6]3+to ...
