2006 Toyota Sienna fuse box diagram ; Multifuse MUSB. 50A, 59. (HTR) Air conditioning system, “A/C” fuse ; Multifuse MUSB. 50A, 60. (FAN) Electric cooling fans. Toyota Sienna Fuse Types. There are four different types of fuses used on the Toyota Sienna, as described in the owner's manual: The four different fuse types: A, B, C, and D. Type A is a blade-type mini fuse. This is the only type I've ever dealt with and the most common type of fuse.

2006 Toyota Sienna Wiring Diagram from www.carfusebox.com. Print the wiring diagram off plus use highlighters to trace the signal. When you make use of your finger or perhaps the actual circuit with your eyes, it is easy to mistrace the circuit. 1 trick that We 2 to printing a similar wiring plan off twice.

2006 toyota sienna fuse diagram

FUSE MAPAMPSMAIN (For Medium Current)30AAM2 (For Medium Current)30AETCS10AEFI NO.120AH-LP RL15ADRL20AALT S7.5AH-LPLL15ADOOR NO.225AHAZ15ARAD NO.330AA/F25AHORN10AEFI NO.210ADOME10AECU-B10ARAD NO.120A Toyota Sienna X.L.E 2006 Engine Fuse Panel/Board – Fuse Symbol Map Related diagrams: Toyota Camry LE 1998 Instrument Cluster Fuse Box/Block Circuit Breaker Diagram Toyota Tacoma 2009 Engine Fuse ... 2006 toyota sienna fuse diagram Menu. Home; Translate. Read Bobby Fischer Teaches Chess Hardcover Betty Crocker's The Big Book of Cakes (Betty Crocker Big Book) Add Comment Bobby Fischer Teaches Chess Edit. 2006 sienna fuse diagram - Toyota Sienna question. Search Fixya. Browse Categories Answer Questions . Toyota Sienna Car and Truck; Toyota Car and Truck; Cars ... 2006 sienna fuse diagram - Sienna Toyota Cars & Trucks. Posted by jck1441 on Oct 13, 2010. Want Answer 0 ...

2006 toyota sienna fuse diagram. Pg. 250 of your 2005 Owner's Manual shows the location of the Fuse Boxes. There is one under your hood on the driver's side and the other is under the dash just to the left of steering wheel. Pg 272, will show you how to replace the fuses. Pg. 286-287 gives a diagram and description of each fuse and what part of the electrical system it enables. Fuse box diagram (fuse layout), location, and assignment of fuses and relays Toyota Sienna (XL20 / GSL30L / GSL35L) (2003, 2004, 2005, 2006, 2007, 2008, ... Toyota 4Runner (1996-1998) Fuse box diagram (fuse layout), location, and assignment of fuses and relays Toyota 4Runner (N180) (1996, 1997, 1998). Sep 19, 2021 · 2006 toyota sienna starter relay location. Submitted by carpny team in march, 6 2016. This kind of impression (2006 toyota avalon starter location | wiring diagram and fuse box intended for 2006 toyota sienna parts diagram) earlier mentioned is classed with:

The video above shows how to check and change blown fuses in the engine bay of your 2006 Toyota Sienna in addition to where the fuse box diagram is located. Fuses should always be the first thing you check if your Sienna is experiencing electrical difficulties because they are relatively easy and inexpensive to change yourself. The fuse box is located under the instrument panel (on the left side), behind the lid. The location of the fuses in the passenger compartment: Toyota Sienna ( ... Toyota Sienna II XL20 Fuse box. Years of production: 2003 2004 2005 2006 2007 2008 2009. Toyota is a big multinational automobile company based in Japan. Using a 2006 Toyota Sienna, I show you the location of the Fuel pump relay and fuse. I also point out a few other important fuses to check if your toyota sie...

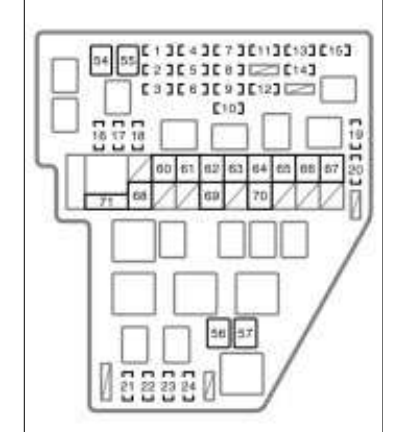

Aug 24, 2016 · Toyota Sienna Second Generation mk2 (XL20; 2006) – fuse box diagram. Year of production: 2006. Engine compartment Toyota Sienna mk2 – fuse box – engine compartment Instrument panel (driver’s side) Toyota Sienna mk2 – fuse box – instrument panel (driver’s side) Instrument panel (passenger’s side) Toyota Sienna II XL20 Fuse box Years of production 2003 2004 2005 2006... imgvehicle.com Fuse Box Diagram Toyota Sienna CE, LE, and XLE; 3.3L V6 - (3MZ-FE), 3.5L V6 - (2GR-FE) (GSL30L, GSL35L; 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010) Fuse box diagrams (location and assignment of electrical fuses) Toyota Sienna (XL10; 1998, 1999, 2000, 2001, 2002, 2003).

Toyota Sienna (XL20) (2003-2010) Fuse Box Diagrams

I own 2006 toyota sienna van, one cigarate charger doen't work which fuse shoud i need to check Check the fuse marked "power outlet" on the fuse panel inside lower left of the dash, there may be more than one marked like this.
