Holley 4150 carburetor parts, including carburetor kits, floats and other related carburetor parts. The Holley 4150, 4 barrel carburetor was introduced in 1957 on some Ford engines. It was used on . Chevrolet and Chrysler engines later. It was the most popular carburetor for use on high performance engines. 147 Secondary Power Valve Assembly 148 Secondary Power Valve Gasket 149 Secondary Metering Body Gasket 150 Secondary Metering Body Assembly 151 Secondary Metering Body Plate 152 Secondary Metering Body Plate Gasket 153 Main Metering Body & Plugs Assembly - Secondary 154 Secondary Metering Body Screw 155 H.I.C. Cover Screw 156 H.I.C. Cover 157 Hot Idle Compensator Assembly 158 H.I.C. Seal

Holley 4150 carburetor parts, including carburetor kits, floats and other related carburetor parts. The Holley 4150, 4 barrel carburetor was introduced in 1957 on some Ford engines. It was used on . Chevrolet and Chrysler engines later. It was the most popular carburetor for use on high performance engines. Holley 4150 Diagram ...

Holley carb parts diagram

carburetor and the air cleaner. Holley® offers such a spacer (Holley® P/N 17-13). Depending on the overall height, obtain the proper length 1/4 x 20 stud and install in the carburetor airhorn. Close the hood slowly to ensure adequate clearance between the air cleaner stud and the hood. Holley 4150 carburetor parts, including carburetor kits, floats and other related carburetor parts. The Holley 4150, 4 barrel carburetor was introduced in 1957 on some Ford engines. It was used on . Chevrolet and Chrysler engines later. It was the most popular carburetor for use on high performance engines. Holley Carburetor Selector. Instructions for Part# 0-80514-1. Carburetor Numerical Listing for Part #0-80514-1. This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern.

Holley carb parts diagram. Holley Carburetor Numerical Listings Carb. Primary & Primary Secondary Primary Secondary Primary Carburetor Model CFM Renew Trick Secondary Main Main Jet Metering Metering Primary Discharge Part No. No. Kit Kit Needle Jet or Plate Block Block Power Valve Nozzle & Seat Size 0-1848-1 4160 465 37-119 37-933 6-506 122-57 N/S N/S 34R9716-3 125-85 .025 The carburetor may be equipped with a hand choke, intregal automatic choke, or a divorced automatic choke. The choke system temporarily enriches the mixture to aid in starting and running a cold engine. FUEL INLET SYSTEM (Fig. 5) All fuel enters the fuel bowl through the fuel inlet fitting in the carburetor body. The 'iviton" tipped fuel inlet ... Holley Carburetor Model 2300-C Instruction Sheet 199R8338 TYPICAL VIEW The exploded view shown is typical of the model carburetor this kit will service. The view may differ slightly from the actual carburetor being renewed. This kit may contain more parts than are actually required to service a given carburetor. Holley 4160 Diagram. Almost everybody has a Holley carb but not everyone know how to tune them we show you how and help you learn the science and basics of. If there is an icon in the performance world, it has to be the Holley four-barrel carburetor. The beauty of the Holley is that from a plain-Jane. Holley and Service Parts Lists and Typical ...

Holley 1900 Series 1 Barrel Carburetors . Holley used '1900' designations for several different series of unrelated carburetors. Holley 1901 . The Holley 1901 was a 'Concentric' carburetor, similar to other 'Teapot' carbs - more information It had nothing in common with the 1904/1908/1920/1940/1960 series which featured a detachable float bowl. Diagram. Holley 1940 1945 1946 6145 6146. Holley 1bbl Parts Page. Diagram. Holley 847 897. Holley 1bbl Parts Page. Diagram. Holley 1970. Holley NH. Step 4: Mount Carburetor to Work Stand. With the main body secured to the throttle body, mount the assembly to a carburetor stand to make assembly easier. Metering Block Assembly. Using parts from a model appropriate Holley renew kit, install new cork rubber gaskets into the metering block's idle-mixture-screw hole cavities. Holley 2 Barrel Carburetor Diagram. Tuning Holley Carburetors, How To Tune Holley Carburetors, How to adjust Holley While at idle, back them out 1/8 turn at a time, alternating between the 2 or 4, You can also do this adjustment without a vacuum gauge, the adjustment are. The Holley two-barrel carburetor is designed with two adjustment screws 2.

Holley 4150 Diagram. , , , , ,. , , , and WARNING! These instructions must be read and fully understood before beginning installation. Holley Service Parts Lists and Typical Views. This is from the Holley Carburetion Catalog for It features exploded diagrams and parts identification. Diagram: Holley 885 Parts Page Diagram: Holley 1970 Parts Page Diagram: Holley NH Parts Page Diagram : Also Check out Diagram Page : Carbs Unlimited 253-833-4106 . E-Mail sales@carbs.net. This Site Designed By EagleServer WebSite Design ... The 0-7448 is designed as a stock replacement for 2BBL street applications as well as being mandated for some oval track racing sanctioning bodies. Whether you are looking for a replacement carburetor to replace your tired and worn factory 2BBL or one to push you to the finish line on Saturday night, the Holley 0-7448 Performance 2BBL is the perfect choice. Exploded View of Holley models 5200 and 6500 Carburetor Find the part you need by number: To request additional information or to obtain information on price and availability of any part shown above, please fill in our Information Request Form ...

Cool Holley 1904 1908 Carburetor Parts Diagram T Shirt Free Shipping Ebay

Each Holley power valve is stamped with a number to indicate its vacuum opening point. For example, the number "65" indicates that the valve will open when engine vacuum drops to in. Hg or below. "75" indicates in. Hg, "85" indicates in. Hg, etc. 4 Barrel Holley Carburetor Diagrams ~ welcome to our site, this is images about 4 barrel holley ...

Holly Carburetor Model 4150 Illustrated Parts Break Down 2 Of 2

Holley Carburetor Disassembly Guide: Rebuild Step-by-Step. July 16, 2017 by Muscle Car DiY. If you plan to disassemble a carburetor, it should be done with the carburetor removed from the intake manifold and placed on a clean workbench. To make the carb more stable, place it on a stand that supports the carb by its baseplate-to-manifold ...

Flathead Parts Drawings Fuel System

Holley carburetor numbers may be listed as R-1185-1A, with 1185 being the list number and generally can be used to identify the correct carburetor kit. Our catalog includes carburetor kits, floats, thermostats, choke pulloffs and other carburetor related parts. All parts that we have available can be found in this catalog.

Ford 2000 Tractor Holley Carburetor 2 Carburetor Tractors Ford

The List number for a Model 2010, 2300, 4010, 4011, 4150, 4160, 4165, or 4175 carburetor can be found on the right side of choke air horn. The List number for the 4500 can be found on the top of the main body casting. Below the list number is a date code that will contain no more

2 2 7 Holley Four Barrel Carburetor Myclassicthunderbird

Holley offers a wide variety of replacement and performance enhancing components for your Carburetor. From replacement fuel bowls to power valves and jets and everything thing in between. Free shipping on orders over $100 - Details.

Technical Holley Id Numbers The H A M B

Jet (Diagram 1), to the port marked on the Holley 4160 (Diagram 3). B. On Rochester 2GC applications, the PCV connection is into the manifold, therefore it does not appear in Diagram 1. You must connect the PCV to port 5 on the Holley 4160. C. On applications using a carburetor bowl vent, connect the vent hose to fitting 6 on the Holley 4160.

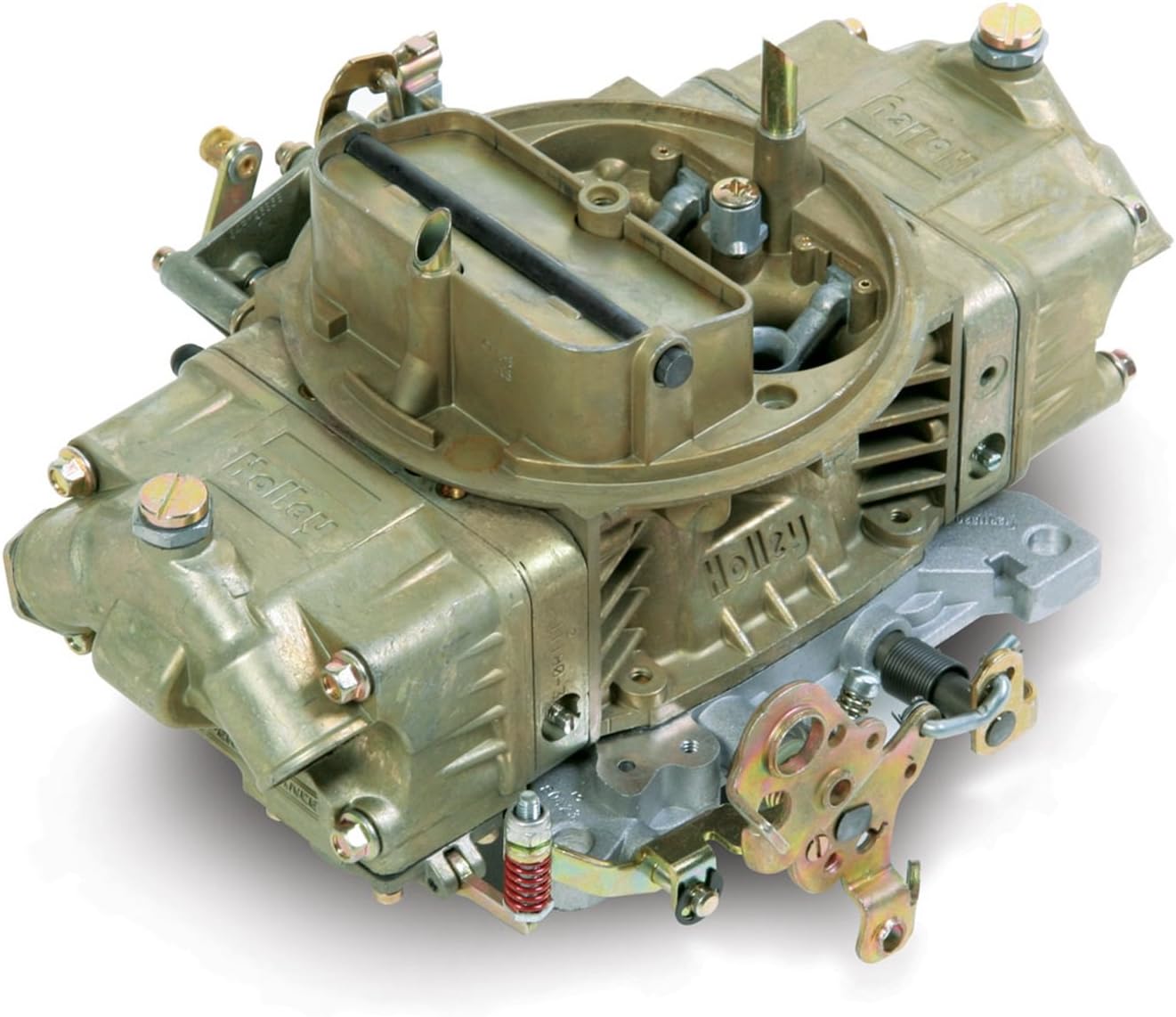

Amazon Com Holley 0 4779c Model 4150 Double Pumper 750 Cfm Square Bore 4 Barrel Mechanical Secondary Manual Choke New Carburetor Automotive

Holley modular carbs have detachable float bowls, metering plates and choke assemblies. The 4V carbs have a square-bore flange which is larger than the earlier Teapot carburetor flange. The Holley 2300 is the 2-barrel version. This illustration shows an early Ford 2300C (C = automatic choke). This is a 4150C carburetor.

Manual Choke Rod On Carburetor Ford Truck Enthusiasts Forums

Holley. Brand. Power Valves. Each Holley power valve is stamped with a number to indicate its vacuum opening point. For example, the number "65" indicates that the valve will open when engine vacuum drops to 6.5 in. Hg or below. "75" indicates 7.5 in. Hg, "85" indicates 8.5 in. Hg, etc. 10.99ea.

Service manual, part numbers, illustrations, and pictures for the Holley 4180C as used on the 1983, 1984, 1985, and 1986 Ford pickups with the 5.8L HO and 460 engines. In 1983-86 Ford used the Holley 4180C 4bbl carb on the 351HO and the 460. The following illustrations and part #'s are from Ford's master parts catalog.

Holley Carb Hunter S Guide Holley Motor Life

The original Dominator® took carburetion to another level in 1969 when it was developed for NASCAR® racing. Holley Dominator carburetors are designed specifically for making top end horsepower and torque in high end racing engines and are the perfect carburetor for the budget minded racer. Classic Dominator carburetors feature an aluminum main body with a contoured venturi inlet for balanced ...

Holley Carburetor Parts Diagram. How to Adjust the Air Mixture for a Holley Carburetor . Properly adjusting a Holley carburetor's air/fuel mixture will determine the fuel economy as well as the performance of the engine. If the mixture is too rich, it won't have a proper quantity of air which can lead to foul spark plugs and poor gas mileage.

Abc427 Economy Holley Carburetor Repair Kit

Holley Carburetor Selector. Instructions for Part# 0-80514-1. Carburetor Numerical Listing for Part #0-80514-1. This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern.
