Figure 2.9 The real refrigerant cycle in the log P/h diagram. The overheating is the difference between the temperatures at points 1.1 and 1.2. The sub-cooling is the difference between the temperatures at points 3.1 and 3.2. Figure 2.10 Log P/h diagram with temperature levels shown. Figure 2.11 The energy flow in a refrigerant system. The refrigeration cycle in the log p-h diagram The refrigeration cycle in the log p-h diagram The real refrigeration cycle consists of the following changes of state: 1 – 2 polytropic compression on the condensation pressure (for comparison 1 – 2’ isentropic compression) 2 – 2’’ isobaric cooling, deheating of the superheated steam
Fig. 11. T-S diagram for Wet Vapour Compression Cycle Fig. 12. P-h diagram for Wet Vapour Compression Cycle In this cycle, enthalpy at state 2 is found with the help of dryness fraction at this point (2). The dryness fraction at points 1 and 2 may be obtained by equating entropies at state 1 and 2. C.O.P = =
Ph diagram for refrigeration cycle
the P-h diagram have been defined, the cycle can be plotted on a P-h chart. P-h charts for all common working fluids (refrigerants) are available. In these charts the pressure and enthalpy values are shown to scale. In the old days large charts were used, and refrigeration engineers would plot the circuit diagram on the chart, allowing various Principles of Refrigeration MAE 554 Professor H. Ezzat Khalifa Syracuse University P-h Chart for R134a (SI Units) ... P-h Diagram for Real Vapor Compression Cycle ... P-h Diagram for 2-Stage VCC with Subcooler. 11 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4-40 -30 -20 -10 0 10203040 50 In this video we talk about the different processes associated with each component of the refrigeration cycle. We define new concepts such as Entropy and Ent...
Ph diagram for refrigeration cycle. The P-h diagram is another convenient diagram often used to illustrate the refrigeration cycle. The ordinary household refrigerator is a good example of the application of this cycle. Results of First and Second Law Analysis for Steady-Flow Component Process First Law Result Compressor s = const. Wmhh () in =−21 Figure 2-8: TS and P-H diagram for liquid sub-cooling in a refrigeration cycle. Exercise 2-4: Implement the sub-cooling cycle in Pro II and report the new COP. Compare it with the dry cycle without sub-cooling and the Carnot cycle. Use streams E and F as initial values. The flowsheet has two loops. Refrigeration cycle in the log p-h diagram. Green = compressor. Red = condenser. Yellow = expansion valve. Blue = evaporator. 1 – 2 polytropic compression to the condensing pressure (for comparison 1 – 2’ isentropic compression) 2 – 2’’ isobaric cooling, deheating of the superheated vapour. 2’’ – 3’ isobaric condensation. Understanding the basic refrigeration cycle diagram also helps us to find subcooled, superheat and to troubleshoot refrigeration processes much easier. As we can see in the Ph diagram below. Saturation curve this curve represents what state (vapor or liquid) and region (sub-cooled, latent heat, and superheat) the refrigerant is in. It also splits into two sections a saturation liquid line and a saturation vapor line.
Nov 29, 2019 · Ph diagram for refrigeration cycle. It is an important diagram used frequently for a performance calculation of a refrigerating machine. A sample r 134a diagram is shown below with a sample refrigeration cycle identifying step 1 evaporator step 2 compressor step 3 condenser and step 4 expansion device. REFRIGERATION CYCLE The vapor-compression refrigeration cycle is the ideal model for refrigeration systems. Unlike the reversed Carnot cycle, the refrigerant is vaporized completely before it is compressed and the turbine is replaced with a throttling device. 5 Schematic and T-s diagram for the ideal vapor-compression refrigeration cycle. The refrigeration cycles can also be represented in a P-H diagram. Figure 5: P-H diagram representation of a dry refrigeration cycle Refrigerant fluid choice: We now turn our attention to the fluids. Usually, one tends to pick pL as low as possible, but not below atmospheric pressure. Thus, the refrigerant chosen needs to have a normal boiling point compatible with the lowest temperature of the cycle (usually 10oC Vapour Compression Refrigeration Cycle. The P-H and T-S diagram for the simple vapor compression refrigeration cycle is shown in the figure for vapour entering the compressor is in dry saturation condition The dry and saturated vapour entering the compressor at point 1 that vapour compresses isentropic ally from point 1 to 2 which increases the pressure from evaporator pressure to condenser ...
Download scientific diagram | Pressure-Enthalpy (P-h) diagram of: (a) an ideal refrigeration cycle, (b) a typical refrigeration cycle [5]. from publication: The Effect of Refrigerant Charge and ... P-h diagram of vapor compression refrigeration cycle Generally, the vapor compression refrigeration system consists of a condenser, an expansion valve, an evaporator, and a compressor. The P-H Diagram of the refrigeration cycle with all the operating conditions are as the following: Figure 1-9 P-H Diagram for the Refrigeration System Figure 1-10 Refrigerant Flow Diagram for the Refrigeration System . Practice-2: The CT, ET and TR are the same as Practice-1 R134a Refrigerant Ph Chart. Posted on November 6, 2020 by Eva. Ideal vapor pression cycle pressure enthalpy chart r 134a 1 refrigeration p h chart for r134a enthalpy chart calculation ni munity reading thermodynamic diagrams. Pressure Enthalpy Chart Of Rankine Cycle With R134a For First Se Scientific Diagram.
Property Diagrams Ts And Ph For Refrigeration 2 Youtube
The Refrigeration Cycle – Complete: Fig 5. In this final diagram of the refrigeration cycle we have introduced 3 new terms: Superheated, Saturated & subcooled. SUPERHEAT – Is an amount of heat added to refrigerant vapour beyond its boiling point. This ensures the refrigerant is in a gas state with no liquid present.
Solved A Standard Vapor Compression Refrigeration Cycle Operating W
P-H Diagram for Ideal Conditions e . H 1 = h f based on temperature at 'd' (exit of condenser) H 2 = h g based on temperature at 'a' (exit of evaporator) Note 1: If there is super -heating in the evaporator, H 2 can not be obtained from P-H table Note 2: If there is sub- cooling in the condenser, H 1 can not be obtained from P-H table

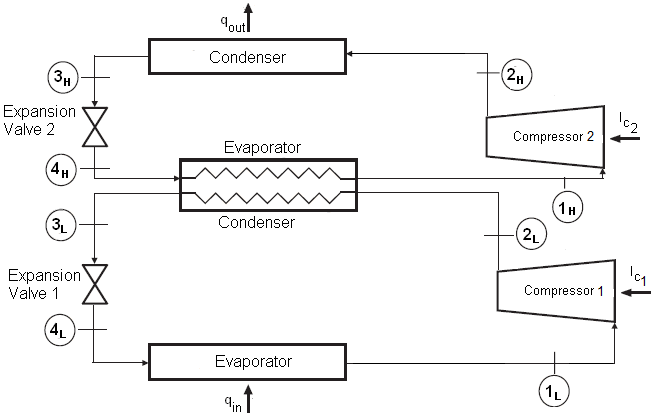

Processes Free Full Text Performance Analysis And Working Fluid Selection For Single And Two Stages Vapor Compression Refrigeration Cycles Html
Refrigeration handbook 1. Basic heat transfer 2. Compression cycle 2.1 The pressure-enthalpy diagram; 2.2 Basic components; 2.3 The basic cycle in a log Ph diagram; 2.4 The complex cycle in a log Ph diagram; 2.5 Other components; 3. Compressors 4. Expansion valves 5. Refrigerants 6. Evaporators 7. Condensers 8.
Jsrae Japanese Society For Refrigerating And Airconditioning Engineers
It is recommended that the engineer get a copy of the P-H diagram for R-134a and the other common refrigerants. These diagrams can be found in the ASHRAE Fundamentals book. A sample R-134a diagram is shown below, with a sample refrigeration cycle, identifying (Step 1) Evaporator, (Step 2) Compressor, (Step 3) Condenser and (Step 4) Expansion Device.
Solved F H Curve In Refrigeration Cycles Introduction The Purpose Of This Lab Is To 3 Pr Enthalpy Pressu Re Curves To Estimate The Amount Of Cooli Course Hero
Learn how to draw a cycle for ideal conditions on a PH chart.Please provide feedback on this module by selecting "Like" or "Dislike". Your feedback and comme...
Pdf Figure 1 Pressure Enthalpy Diagram Of A Propane Refrigeration Cycle Figure 2 Temperature Entropy Diagram Of A Propane Refrigeration Cycle Two Stage Compression Refrigeration Data And Other Data Sets That Compute The
P-H Diagram for Ideal Conditions e . H 1 = h f based on temperature at 'd' (exit of condenser) H 2 = h g based on temperature at 'a' (exit of evaporator) Note 1: If there is super-heating in the evaporator, H 2 can not be obtained from P-H table Note 2: If there is sub-cooling in the condenser, H 1 can not be obtained from P-H table
Vapour Compression Refrigeration Cycle On A P H Diagram Download Scientific Diagram
Figure 4 is a pressure-enthalpy diagram of a typical refrigeration cycle in a system with one pound of HFC-134a. It uses (for this example) evaporating and condensing temperatures of 0°F and 120°F. Points on the diagram are labeled to correspond to locations of equipment in the system. Each step of the cycle can be approached separately.
Figure 3 From Performance Analysis Of A Two Stage Refrigeration Centrifugal Compressor With Variable Inlet Guide Vanes On Both Stages Semantic Scholar

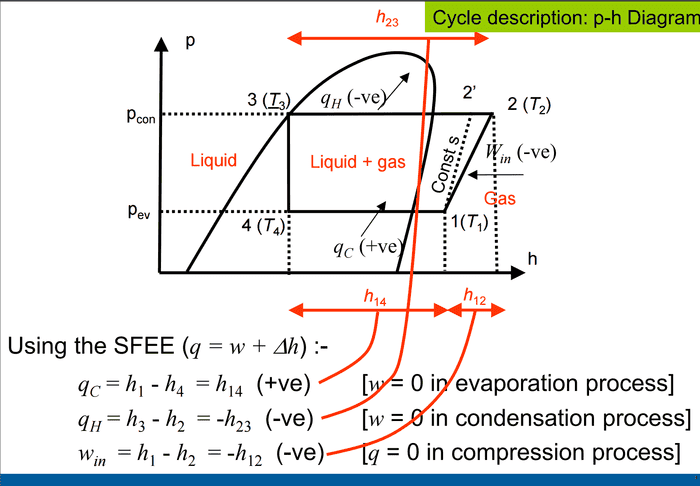

M. Bahrami ENSC 461 (S 11) Refrigeration Cycle 3 Fig. 5-3: T-s and P-h diagrams for an ideal vapor-compression refrigeration cycle. 1-2: A reversible, adiabatic (isentropic) compression of the refrigerant. The saturated vapor at state 1 is superheated to state 2. wc =h2 − h1
Fault Diagnosis Of A Vapor Compression Refrigeration System With Hermetic Reciprocating Compressor Based On P H Diagram Sciencedirect
The following example is a simplified p-h diagram on which a refrigeration cycle is drawn. Point 1 to 4 show the following. Point 1 to 2: Refrigerant change in a compressor. Point 2 to 3: Refrigerant change in a condenser. Point 3 to 4: Refrigerant change through an expansion valve. Point 4 to 1: Refrigerant change in an evaporator.
