39 the diagram shows a conical section fabricated from pure aluminum

The diagram shows a conical section fabricated from pure aluminum. It is of circular cross section having diameter d ax 12 where a 05 m 12. The 25 mm and the large at. The small end is located at x 1 25 mm and the large end at x 2 125 mm. Derive an expression for the temperature distribution t x in symbolic form assuming one dimensional conditions. Question: 3.39 The diagram shows a conical section fabricated from pure aluminum. It is of circular cross section having diameter D-ax 12, where a 0.5 ml/2.

The diagram shows a conical section fabricated from pure aluminum. It is of circular cross section having diameter d a where a 05. The end temperatures are t1600 k and t2400 k while the lateral surface is well insulated. The small end is located at x 1 25 mm and the large end at x 2 125 mm. The small end is located at and the large end at.

The diagram shows a conical section fabricated from pure aluminum

Transcribed image text: The diagram shows a conical section fabricated from pure aluminum. It is of circular cross section having diameter D = ax^1/2, ... The diagram shows a conical section fabricated from pure aluminum. It is of circular cross section having diameter D = ax^1/2, where a = 0.5 m^1/2. The small end is located at x1 = 25 mm and the large end at x2 = 125 mm. The end temperatures are T1 = 600 K and T2 = 400 K, while the lateral surface is well insulated. The below diagram shows a conical section with a circular cross section fabricated from pure aluminum. The circular cross section has a diameter D = 0.5x^0.5. The small end is closed at x_1 = 25 mm and the large end at x_2 = 125 mm. The end temperatures are T_1=600 K and T_2=400 K, while the lateral surface is well insulated. Find the temperature

The diagram shows a conical section fabricated from pure aluminum. The below diagram shows a conical section with a circular cross section fabricated from pure aluminum. Having diameter d small end is located a conical section fabricated it is of circular cross section 12 ax where a 05 m 12. The small end is at x1 50 mm and the large end at x2 250 mm. 329 the diagram shows from pure aluminum. The diagram shows a conical section fabricated from pyroceram. It is of circular cross section with the diameter D = ax, where a = 0.25. The small end is at x_{1} = 50 mm and the large end at x_{2} = 250 mm.The end temperatures are T_{1} = 400 K and T_{2} = 600 K, while the lateral surface is well insulated.. 1. Transcribed image text: 3.29 The diagram shows a conical section fabricated from pure aluminum. It is of circular cross section having di- ameter D = ax\/2, ... Problem 3.29 The diagram shows a conical section fabricated from pure aluminum. It is of circular cross section having diameter D = ax 1/2, where a = 0.5 m 1/2. The small end is located at x 1 = 25 mm and the large end at x 2 = 125 mm.

Transcribed image text: The diagram shows a conical section fabricated from pure aluminum. It is of circular cross section having diameter D = ax^1/2, ... The diagram shows a conical section fabricated from pure aluminum. The diagram shows a conical section fabricated from pure aluminum. The end temperatures are t1 600 k and t2 400 k while the lateral surface is well insulated. It is of circular cross section having diameter d ax 12 where a 05 m 12. The diagram shows a conical section fabricated from pure aluminum. The small end is located at x1 25mm and the large end is at x2 125mm. The end temperatures are t1 600 k and t2 400 k while the lateral surface is well insulated. B an engineer suggests that by holding the fin tip at a low temperature the fin heat transfer rate can be increased. The diagram shows a conical section fabricated from pure aluminum. It is of circular cross section having diameter D = ax^1/2, where a = 0.5 m^1/2. The small end is located at x1 = 25 mm and the large end at x2 = 125 mm. The end temperatures are T1 = 600 K and T2 = 400 K, while the lateral surface is well insulated.

Question: The diagram shows a conical section fabricated from pure aluminum. Itis of circular cross section having diameter D=arn, where a = 0.5 mL/2, ... Question: The diagram shows a conical section fabricated from pure aluminum. It is of circular cross section having diameter D = ax^1/2, where a = 0.5 m^1/2 ... Transcribed image text: The diagram shows a conical section fabricated from pure aluminum. It is of circular cross section having diameter D = ax^1/2, ... The below diagram shows a conical section with a circular cross section fabricated from pure aluminum. The circular cross section has a diameter D = 0.5x^0.5. The small end is closed at x_1 = 25 mm and the large end at x_2 = 125 mm. The end temperatures are T_1=600 K and T_2=400 K, while the lateral surface is well insulated. Find the temperature

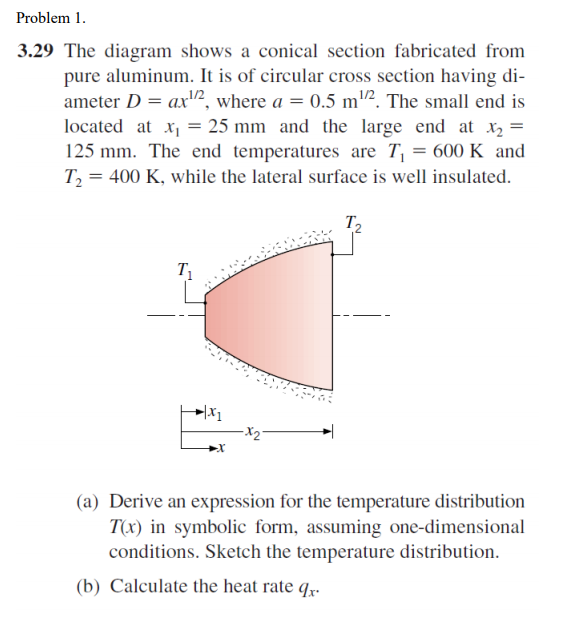

The diagram shows a conical section fabricated from pure aluminum. It is of circular cross section having diameter D = ax^1/2, where a = 0.5 m^1/2. The small end is located at x1 = 25 mm and the large end at x2 = 125 mm. The end temperatures are T1 = 600 K and T2 = 400 K, while the lateral surface is well insulated.

Transcribed image text: The diagram shows a conical section fabricated from pure aluminum. It is of circular cross section having diameter D = ax^1/2, ...
